Data Acquisition
Precision DAQ systems with easy to use PC interfaces
| Realtime Continuous A/D Systems |
| Product |
# Chan |
Resolution |
Sampling Rate |
Connection |
Price |
USBxCH
USB4CH New |
4 |
24 bits |
DC to 10 kHz |
USB Port |
$700 |
PARxCH
PAR1CH
PAR4CH
PAR8CH |
1
4
8 |
24 bits |
DC to 5 kHz |
PC Parallel Port |
$220
$575
$980 |
SER1CH-UA
SER1CH-UA-BANA
SER1CH-UA-DSUB
SER1CH-UA-1in |
1 |
24 bits |
1 Hz |
RS232 Serial Port |
$160
$180
$130 |
| A/D Accessories |
| Product |
Type |
Features |
Use With |
Price |
| USBXCH-GPS-DB25 |
Timing |
Garmin 16x HVS, 25 pin D-shell |
USBxCH |
$120 |
| PARGPS |
Timing |
PPS, NMEA, 10us typical |
PARxCH (x = 1,4,8) |
$285 |
| AMP4CH-DF |
Amplifier |
Gain x100 (40 Db), Differential |
PAR4CH |
$250 |
| Gps Timimg |
For GPS antennas. |
| Cables |
For cables, wall transformers, etc. |
| Terminal Boards |
For discrete wire inputs. |
| Stack Adapters |
For PAR4CH/PC104 stack. |
| SER1CH-UA and PARxCH A/D's |
 |

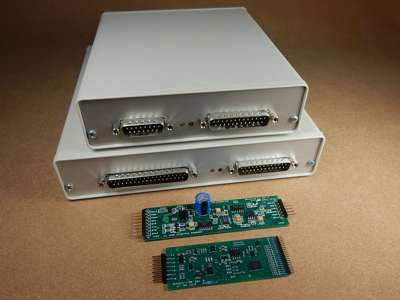

SR realtime data acquisition systems provide high resolution, cost
effective A/D performance, and easy to use PC interfaces. External to
the PC, our A/D's are well separated from the internal digital PC
environment and feature their own linear power supplies for quiet
operation. Products connect via the USB, PC parallel, or RS232
ports.
All of our 24 bit systems feature an "A/D per channel"
architecture, giving high resolution with exceptionally low crosstalk.
Many systems also include precision GPS timing interfaces. These
architectures are usually found only in much more expensive
systems.
A complete software package is included with each system so you
have everything you need to immediately acquire data or develop custom
applications. SR "in the box" systems come without any additional
hidden costs and include power supply, cables, and a PDF user manual with
circuit diagrams.
To find out more, click on a product above for the
system that meets your requirements.
|
